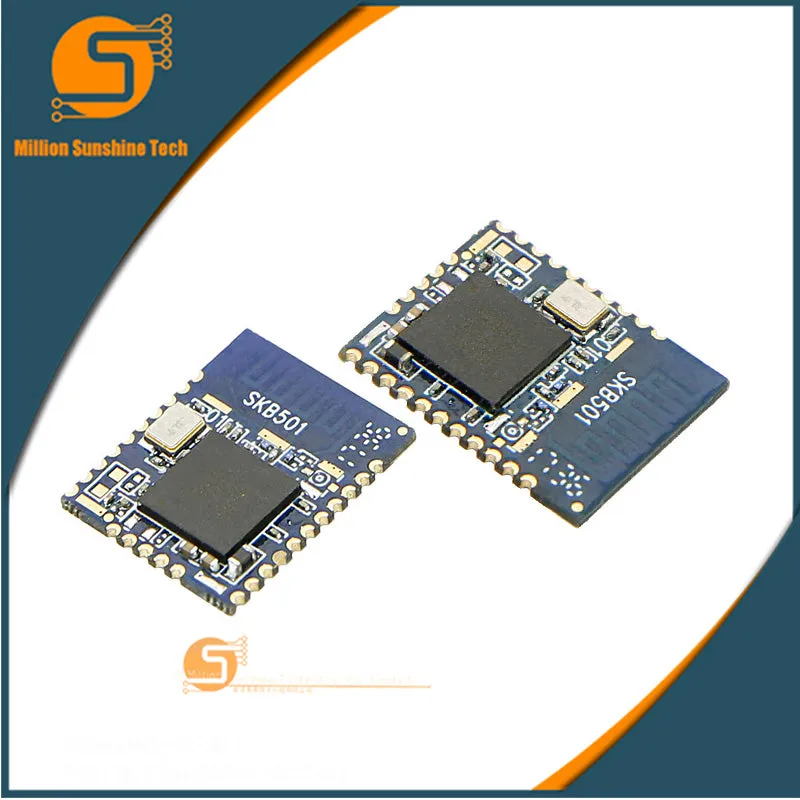

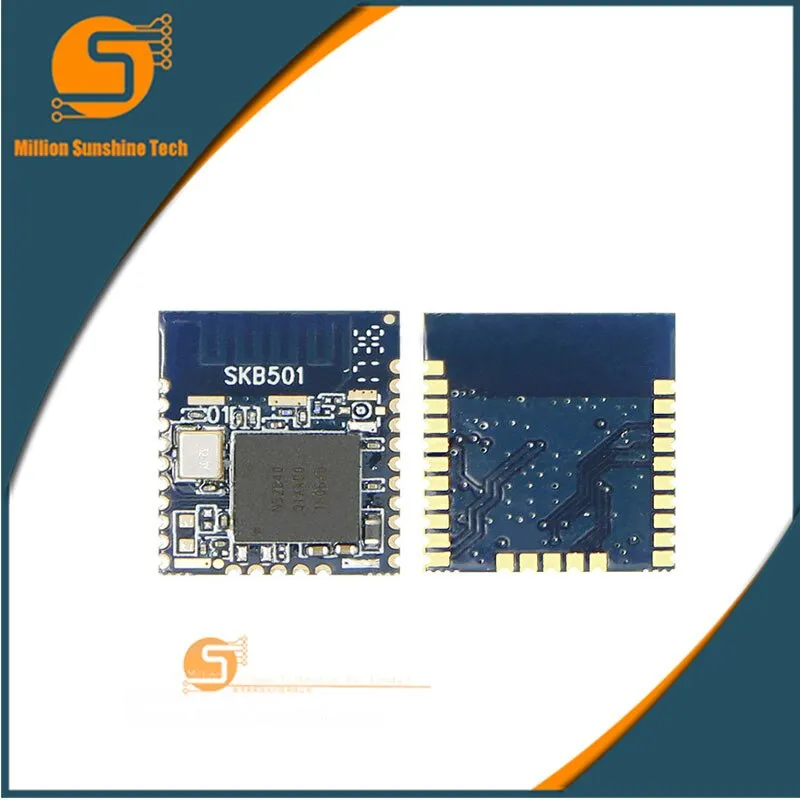

Nordic Offical Strategic Partner SKYLAB Long Distance/Range bluetooth 5 ble 5.0 nrf52 nrf52840 module, bluetooth dongle 5.0

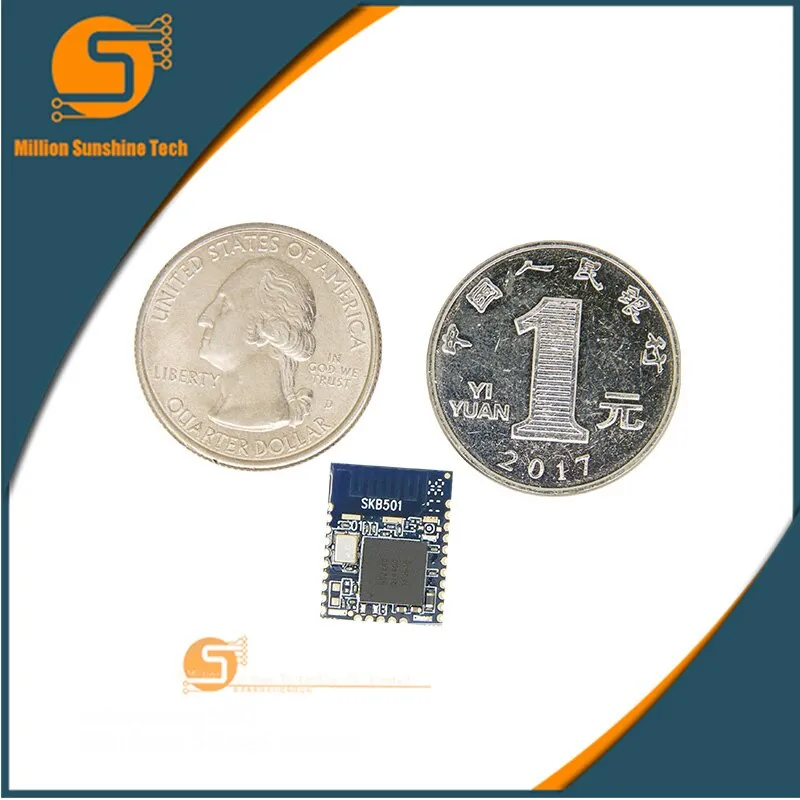

Brand Name:million sunshine type:Receiver & AntennaModel Name:SKB501Name:Multiprotocol Bluetooth 5.0 moduleMain Chip:Nordic nRF52840Protocol Stack :L2CAP, ATT, GAP, GATT and SM protocolsFrequency Range:2400-2483.5MHzVoltage :1.7V~3.6VWireless Security:AES HW EncryptionDimension:17.4(L) x 13.7(W) x 1.9(H) mmAntenna type:PCB Antenna/External antennaPackaging:SMD
Features
◆Bluetooth 5 ready multi-protocol radio
◆Bluetooth 5 datarate support: 2Mbs, 1Mbs, 500Kbs, 125Kbs
◆Support ANT Protocol
◆32-bit ARM Cortex-M4F @ 64MHz
◆Up to 111 dB link budget for Bluetooth long range mode
◆NFC-A on-chip
◆Programmable output power from 8dBm to -20dBm
◆-96dBm Sensitivity for Bluetooth low energy
◆RSSI
◆Wide supply voltage range 5.5v to 1.7v
◆Full selection of interfaces SPI/UART/PWM
◆Programmable Peripheral Interface - PPI
◆High speed SPI interface 32MHz
◆EasyDMA for all digital interfaces
◆12bit/200K SPS ADC
◆128 bit AES/ECB/CCM/AAR co-processor

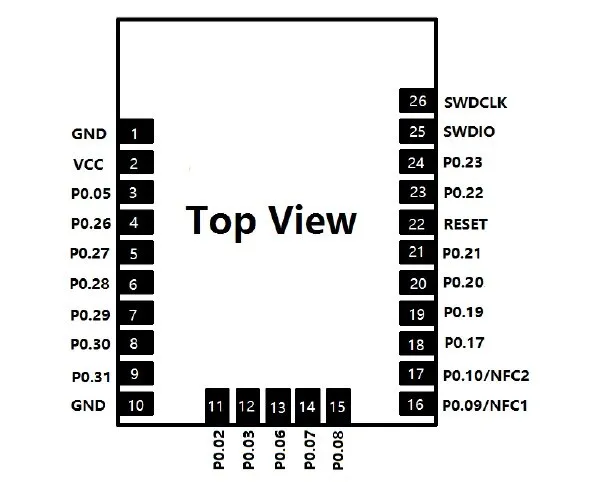

◆20 General Purpose I/O pins
◆SPI Master/Slave
◆Two-wire Master (I2C compatible)
◆UART (CTS/RTS)
◆RoHS compliance (Lead-free)
◆FCC,CE compliance
